Paperless conference system equipment in four form
2022-11-10
A basic feature of the paperless conference system is: the conference room is equipped with a large screen of public video display and a seat display that is controlled and used separately for each seat, when the seat display or asynchronous display is selected, the intelligent terminal is operated by the participants themselves, at this time, the intelligent terminal is like a standard computer used independently, and each participant can switch between the synchronous display or asynchronous display of the public signal autonomously.
How to realize and build a paperless conference system, various system integrators and software development companies have made a lot of attempts. The paperless conference system should first be an intelligent conference system. The intelligence here is not only to realize intelligent management and control of the equipment used in the conference room, nor is it only to provide intelligent tools and services for the conference process, but more importantly, to be able to realize the intelligence of the conference process, usage methods, and even data retrieval and meeting decision-making. At the same time, the conference system must adapt to and be compatible with the rapid development of information technology, the overwhelming flow of software products, and the emergence of the Internet, cloud computing, and big data, which makes the explosive growth of background data and information resources and put forward intelligent decision-making.
With LCD touch display terminals (LCD touch screens, conference tablets, etc.) as the center, it integrates high-definition video and unified communication functions, intelligent multi-screen interactive sharing functions, intelligent conference room central control, audio and video collection and sound reinforcement systems, etc., to form a "people-oriented" intelligent conference experience. It integrates the conference multi-function (video sign-in, call service, bidding voting, SMS sending and receiving, asynchronous viewing of documents, synchronous display of conference materials and handwritten annotations, video on demand or live broadcast, Internet browsing, conference speeches, etc.) on the intelligent display terminal to the greatest extent, and provides users with the most natural human-computer interaction interface in the form of simulated UI (supports multi-point two-finger zoom of capacitive screen, swiping to read annotations, sending and saving, etc.), and also realizes mobile phones, tablet computers, Mobile terminals such as laptops and intelligent display terminals work together, intelligently share and interact with each other.
The peripheral equipment covered by the paperless conference system includes a sound system, a power amplifier system, a video system, a voice recognition system, a software system that provides conference services and conference aids, a screen lifting or flipping system for each seat, a projection system or a splicing screen for public display, in addition to network switches, central control systems, DVD players, and video matrices are also equipment that often needs to be configured in conference rooms.

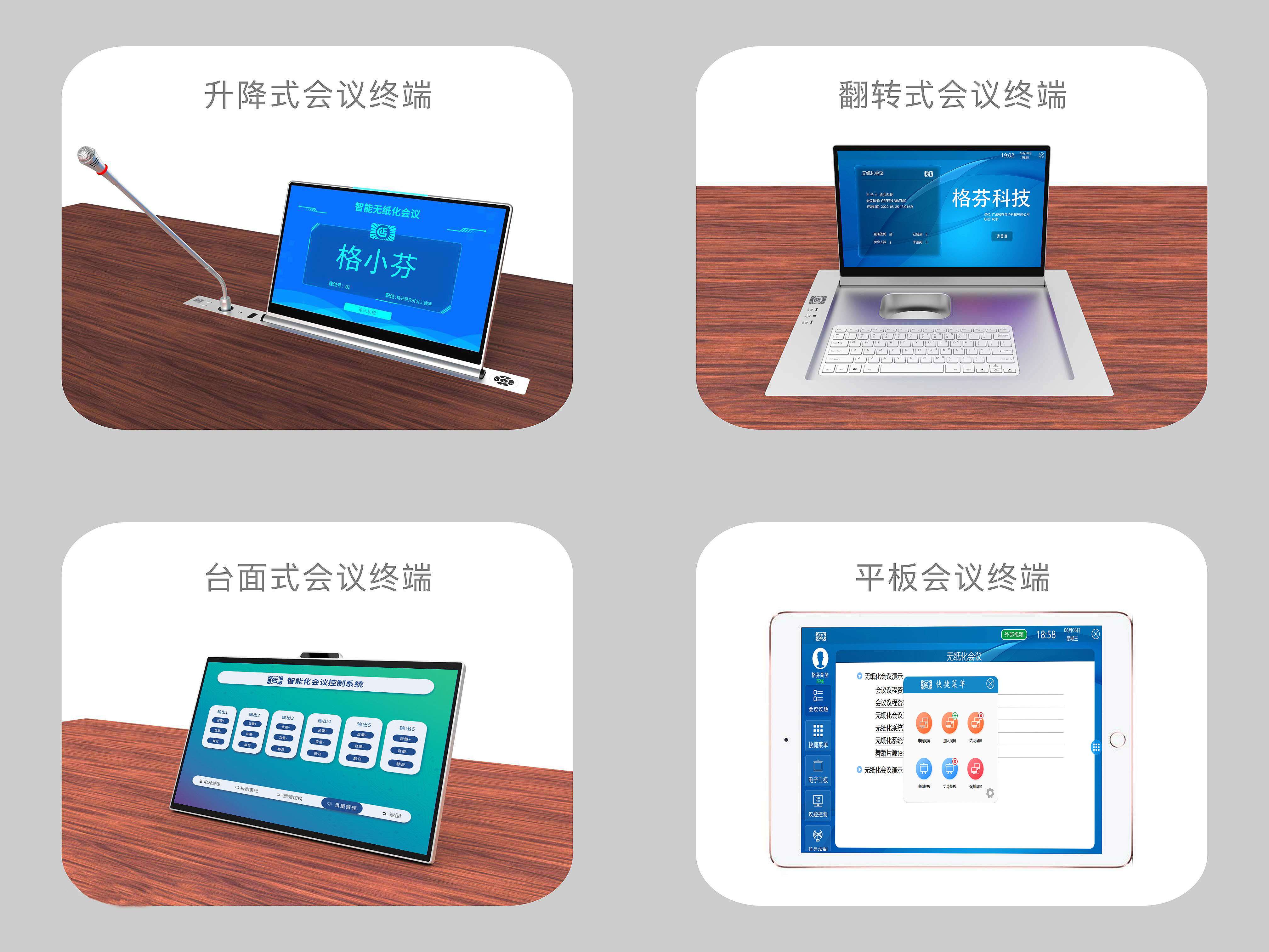

1. Lifting type:
The speed of raising or falling can be completed within 8 seconds, the elevation angle of the screen body is 0-60 degrees, and the elevation angle can be adjusted by hand
The inner 15.6-34-inch LCD screen is a capacitive screen multi-touch type, which is simple and convenient to view and operate, and the system can support wireless keyboard, mouse or handwriting tablet
The 7-inch LCD electronic display table card embedded on the outside of the shell has a resolution of 1366*768dpi, supports remote name editing, and the background template can be customized
The LCD terminal is a high-resolution (1920x1080dpi) true-color digital LCD screen, and the display effect is clear and bright.
It supports centralized control in the background, and uniformly forcibly switches functions such as check-in, call, voting, video, document interface, and name display
Support the system to achieve remote control, remote diagnosis, automatic update and upgrade
2. Flip type:
It integrates flip monitor, lifting keyboard, computer host, and paperless UI interface. When not in use, the keyboard and mouse are hidden, and when the flipper is turned on, the display automatically flips to a certain angle, and the keyboard also rises, making it lightweight and beautiful. The latest mechanical anti-pinch hand function, safe and reliable. The lift panel is equipped with on/off keys, USB, lift buttons, and headphone jacks. The size, color, material and color of the cabinet can be customized according to user needs. It can be controlled remotely by stand-alone, or it can be controlled by multiple units through the central control.
3. Countertop type
The system is developed based on a tabletop platform, adopts the industry's tabletop architecture, and the top hardware configuration includes a dual-core processor and a multi-touch true-color digital LCD screen. The desktop mobile touch conference terminal system realizes full digital management, supports Ethemet network connection mode, and effectively guarantees the quality of communication. The central node of the system is connected by Gigabit Ethernet serial mode, the cascade expansion is all realized through network cables, and the terminal adopts wired communication networking, which has good adaptability to various specifications of conference halls and temporary venues.
4. Flat type
Tablets have sprung up like mushrooms after a rain, and they are designed to combine paperless conferencing software with the flexibility and speed of a tablet.
