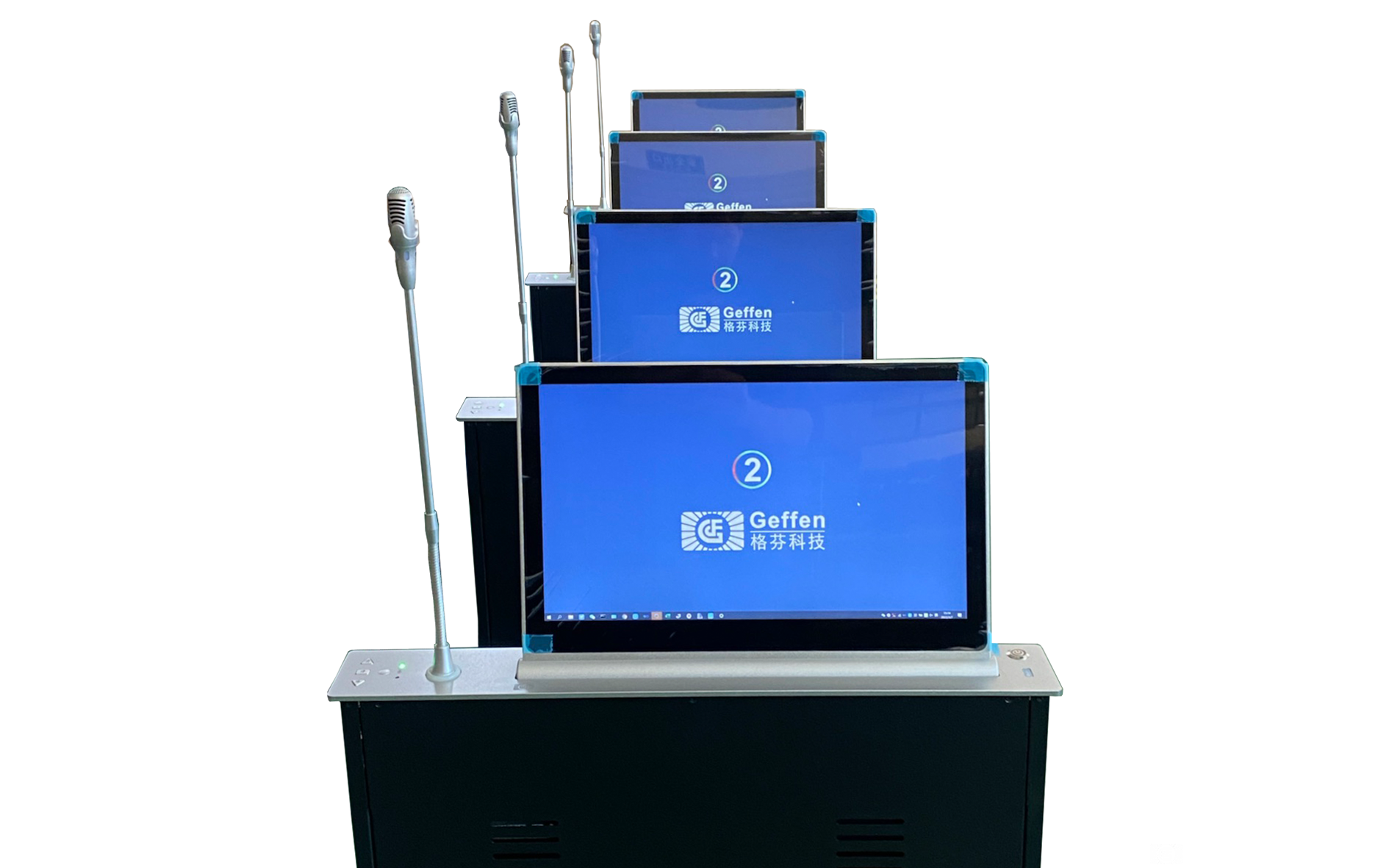

Paperless Conference System-LCD Lifter 15.6inch

GEFFEN adopts a full A+ no bright spot, no color dot LCD screen, dust-free operation and lamination can ensure that there is no granular dust in the screen, hair, fingerprint and smudge resolution of 1920X1080. Display viewing angle: IPS full viewing angle.

Detail
Topography

Display requirements: using full A+ no bright spots, no color dot LCD screen, dust-free operation and lamination can ensure that there is no granular dust in the screen,
Hair, fingerprint and smudge resolution is 1920X1080, display viewing angle: IPS full viewing angle
Front display resolution: 1920*1080
Screen mounting environment: professional lamination of dust-free operation table
Screen frame process: CNC integrated molding, aluminum alloy drawing, sandblasting, anodizing
Hardness of the box: Wechsler hardness (HBW) = 9.0kg/mm²
Panel material: aluminum alloy silver white brushed, high-gloss black brushed
Panel process: aluminum alloy brushed anodizing integrated molding process
Box steel: carbon steel 1.5 mm thick, sandblasted paint
Motor material: all-copper core steel gear, all-steel waterproof shell
Transmission mode: double linear bearings and three-axis positioning (bearing steel material) are adopted, smooth rotation and low noise
Product interface: The display interface of the lifter is outside the box, and customers can choose VGA or HDMI input signals according to their needs
Lifting travel time: 35'
Power supply 220V, 50/60Hz 1A
The power of the motor with 30W certified by China 3C is P=25W
Interface section :
1 x DB15 (female) VGA interface
1 x HDMI (female)
1 x USB (female)
4PIN computer switch cable
RS-485 or RS-232/control interface
AC 220V power connector
Technical Indicators
Control mode: hand control, remote control, central control, centralized control
Wireless signal: 315MHZ wireless RF signal
Remote control distance: 30 meters
Display tilt angle: ≤15°
Tilt method: mechanical swing angle (the screen frame is processed at one time to form the angle to ensure the uniformity or stability of the swing angle)
Color: Brushed noble black, brushed elegant silver
Net weight: 18Kg
Microphone parameters:
Panel material: aluminum alloy silver white brushed, high-gloss black brushed
Panel material: aluminum alloy
Panel process: aluminum alloy brushed anodizing integrated molding process
Box steel: carbon steel 1.5 mm thick, sandblasted paint
Microphone parameters: new numerical control design
Uni-directional, anti-blast and wind-proof cover
The microphone is highly sensitive
The unit is powered by the system host, and the input voltage is 24V as the safe range
The unit is connected by an 8-core "T" wire
Speaking instructions, clear voice
It adopts ultra-long-life, noiseless tact switch
Comes with a microphone unit cable
Comply with the international conference equipment electrical certification standard (IEC 60914) and the international safety standard UL or CE certification
Aviation connector, split-microphone
When the microphone is turned on, the capsule lights up red and the rated voltage is DC24V
The maximum output power is 0.8W
Quiescent current 28mA
Priority YES NO
Microphone connection plug-in Round 8p-DINx2MD
Type: Capacitive type
Sensitivity -45±3db@1KHz
Frequency response range 100Hz-12.5KHz
The signal-to-noise ratio is 70dB
(Note: The specifications and characteristics of the product are subject to the actual product)
