VGA 1 in 32 out distributor
HDV-1:32

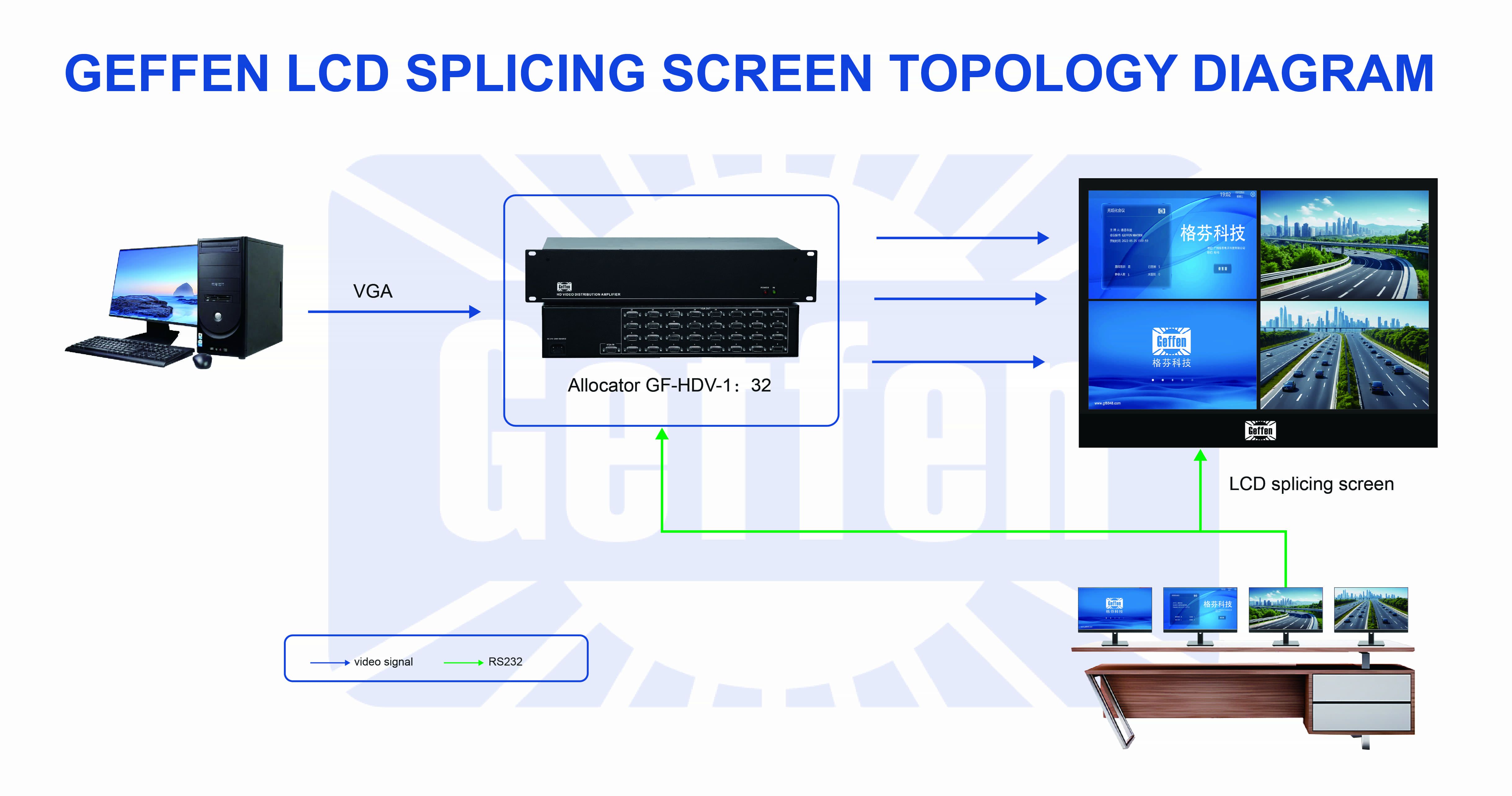

HDV-1:32 distribution amplifier is a high-performance computer signal distribution device, 1 VGA input, 24/32 VGA output, used for one computer signal to drive multiple displays. Independent RGBHV input, each signal component is transmitted separately and amplified separately. The signal transmission attenuation is minimized, so that the image signal can be output with high fidelity. The P/2 DA24/32xi distribution amplifier is mainly used in radio and television engineering, multimedia conference hall, large-screen display engineering, television teaching, command and control center and other occasions that require extremely high definition. The P/2 Da24/32xi is suitable for the distribution of various displays and projection signals.

Detail

Features:
1. REAL 350MHZ HIGH BAND CHANNEL.
2. 2048*1536 high resolution.
3. 65 meters ultra-long-distance transmission.
4. The deepest cascade of 6 layers.
5. Built-in international industrial-grade wide power supply design.

6. 1 year free warranty

Specifications:
VGA amplifier bandwidth: 350 MHz
Video input signal: 1.2 Volts p-p
Synchronous input signal: 5 Volts p-p (TTL)
Horizontal scan frequency: 15-70 KHz
Vertical scan frequency: 30 - 170 Hz
Supports all VESA standard video resolutions
VGA input port: HD-15
VGA output port: HD-15
Power supply: 110~230VAC
Power consumption: 15 watts (max)
Size: 2U 19" standard chassis
Shipping weight: 5.5Kg
