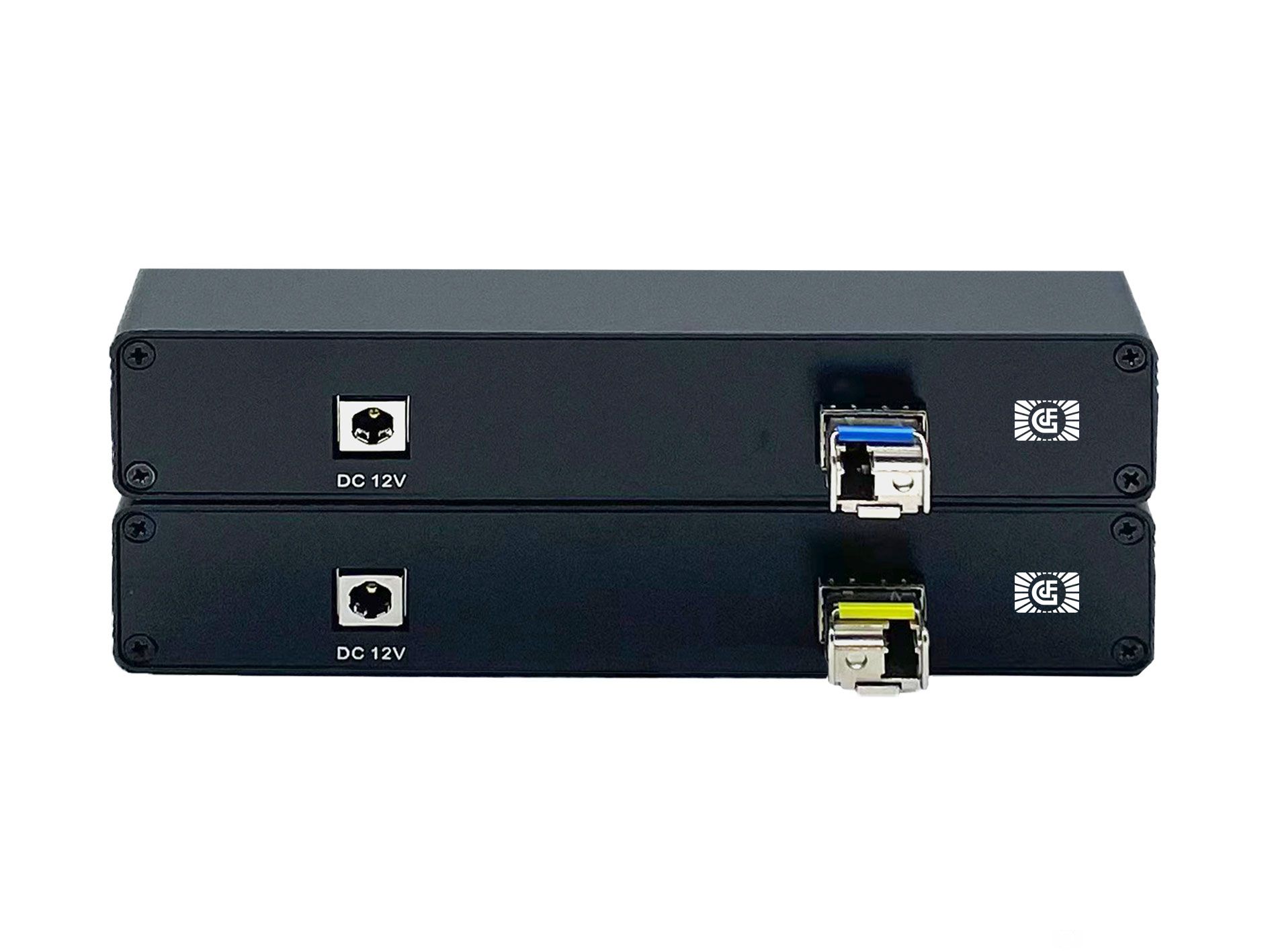

GEFFEN 12G-SDI fiber optic transmission system supports 12G-SDI/6G-SDI/3G-SDI/HD -SDI/SDI/ASI.Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. It is a miniature-style extension solution that supports all SDI formats resolution up to 4K withaudio and metadata. It features a local SDI loop out and dual SDI outputs and supports 12G/6G/3G/HD/SD-SDI signals.
GEFFEN12G-SDI fiber optic transmission system complies with SMPTE ST 2082 -1 (12G UHD-SDI), ST 2081-1 (6G UHD-SD), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M. SMPTE305M, SMPTB3 10M standard, automatically recognizes 12G-SDV6G-SDI/3G -SD/HD-SDI/SDI/ASI inputs, no manual selection required. It has the characteristics of small body, easy to carry, and simple to use. Suitable for long-distance transmission of 4K signals.
● Support 12G-SDI/6G-SDI/3G-SDI/HD -SDI/SDI/ASI
● The signal input has the function of automatic cable equalization, and the output has the function of driving
● The transmitter adopts 1+1 loop out, which supports one independent forward analog stereo audio signal transmission
