HDMI1 in 10 out 4K60 splitter
HDH-1:10U

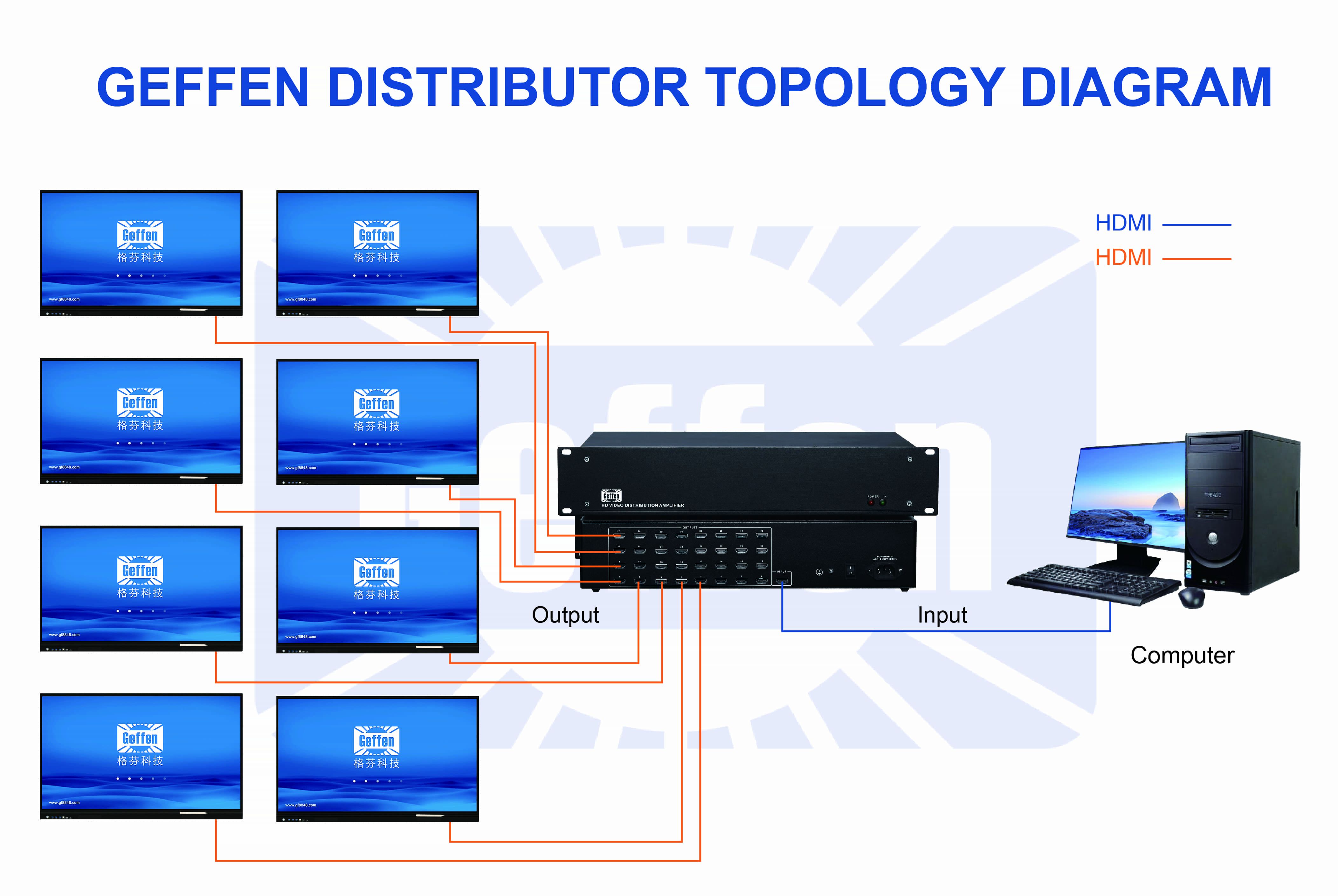

The Geffen HDMI1 in and out 4K60 splitter can connect 1 HD source to 10 HD display terminals. This HDMI splitter supports resolutions up to 3840x2160/60HZ. The HDMI signal can be amplified by distributing the HD signal generated by one HD signal source to 10 displays or projectors that support the HD signal. This product can support EDID management function, with 8 EDID modes, users can choose according to their own needs, in addition, this product also has a built-in IR-TX expansion function, through the amplifier of the distributor IR-RX to receive infrared remote control command for remote control of the signal source.

Detail
Specification

●Support HDMI2.0 version, HDCP2.2
● Support 3D video formats
● HDR support
● Support CEC (output 1 only)
● Support the maximum resolution up to 3840x2160@60Hz
● Support the highest rate of 6G, when the TMDS clock is 600Mhz
● Support 8/10/12-bit color depth
●Support the use of AWG26 cable input transmission distance up to 8 meters, output transmission distance

up to 8 meters
●Support one HDMI signal input, multiple HDMI signal output to the display
●Built-in IR expansion function (remote control of the signal source is carried out by receiving the IR remote

control command by the IR-RX with the 2.0 amplifier)
●Support serial port online upgrade
● Support EDID management

● HDMI version: HDMI 2.0
●HDCP version: HDCP 2.2
● HDMI resolution can support up to 3840x2160/60Hz
● Support video format 8/10/12-bit color depth
●Support audio format DTS-HD/DolbytrueHD/DTS/Dolby-AC3/DSD
● Maximum bandwidth transmission 600MHz
●Power adapter specifications: input AC (50Hz, 60Hz) 10V-240V; Output: DC12V/3A
● Maximum transmission rate .6Gbps
●Input cable length≤ 8m AWG26 HDMI standard cable
●Output cable length≤ 8m AWG26 HDMI standard cable
●The maximum operating current is 1.4A
●Operating temperature range: -15 to +55°C
●Size and weight: 37.5cmx8.9cmx2.2cm
