System Type: 10" Multi-functional Speaker (Suitable for Main PA and Monitor Applications)
●Effective Frequency Range (-10dB)：55Hz–20kHz
●Speaker Driver Unit：1×10"+1×1.4"
●Nominal Impedance (±20%)：8Ω
●Speaker Power：250W (AES), 1000W (PEAK)
●Characteristic Sensitivity Level (±2dB)：96dB/W/m
●Sound Pressure Level (SPL) within Designated Frequency Band：≥120dB
●Total Harmonic Distortion (THD)：≤3%
●Coverage Angle (Horizontal/Vertical)：100°×60°
●Monitor Angle：53°
●Connectors：2×NL4 Speakon
●Structural Feature：The speaker is equipped with a compression-type bass reflex port for stronger low-frequency output and longer sound projection distance

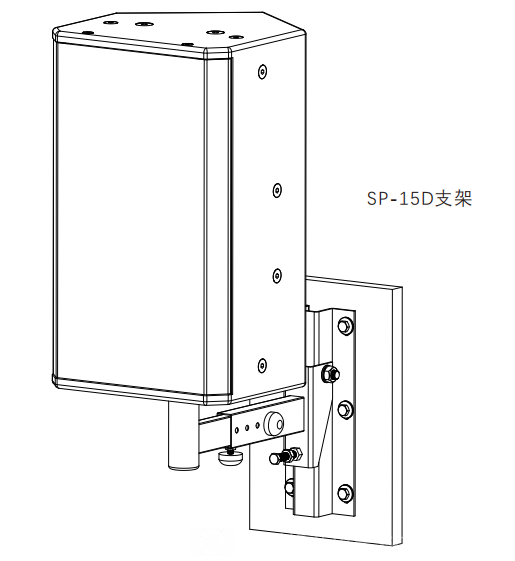

●Mounting Methods：Wall bracket, U-bracket, base bracket
●Cabinet Material：Wood
●Net Weight：14.4kg
