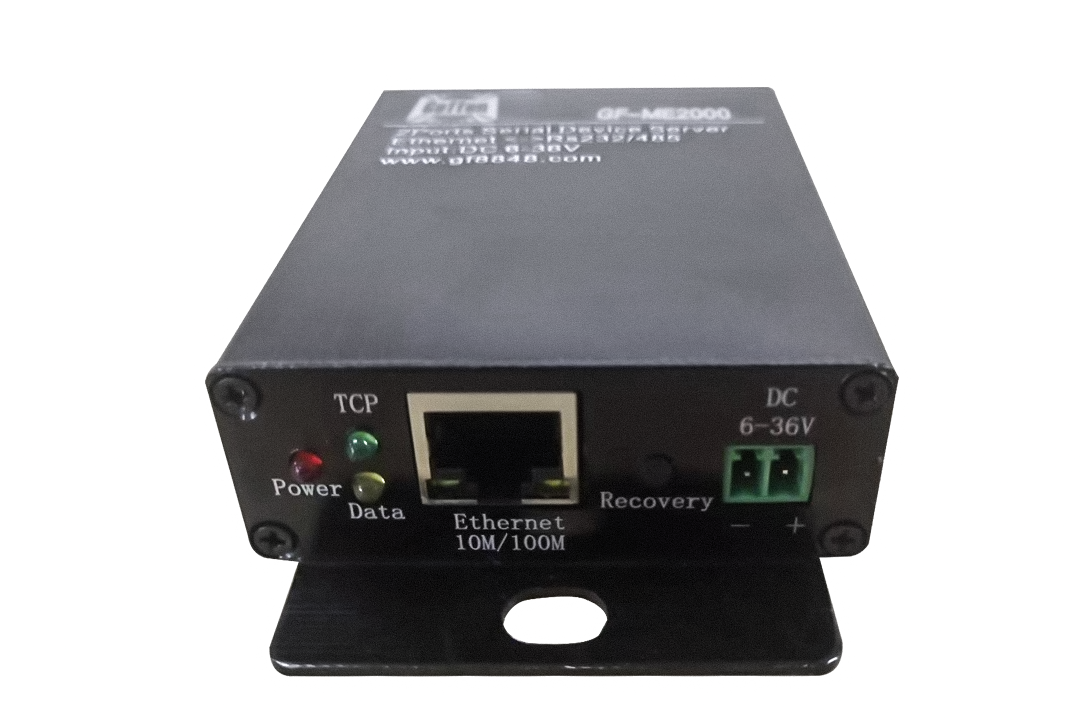

The GF-ME2000 offers 10M/100M Ethernet interfaces and provides 2 standard RS485/232 serial ports, with communication parameters configurable through various settings. The GF-ME2000 can be widely applied in PLC control and management, access control and medical systems, building control, industrial automation, measuring instruments and environmental monitoring systems, smart home appliances, LED information display devices, and CNC management.

● Dual-channel, can choose 485 or 232 to RJ45 network port, transparent data transmission, 10M/100M adaptive network port

● Industrial-grade ARM Cortex M0 32-bit microcontroller

● Network port supports 10M/100M adaptive, supports AUTO-MIDX, can be connected straight or cross freely

● Supports IP, ARP, ICMP, TCP, UDP, DHCP, HTTP and other network protocols

● TCP connection supports Keep-Alive mechanism, supports random automatic port numbers

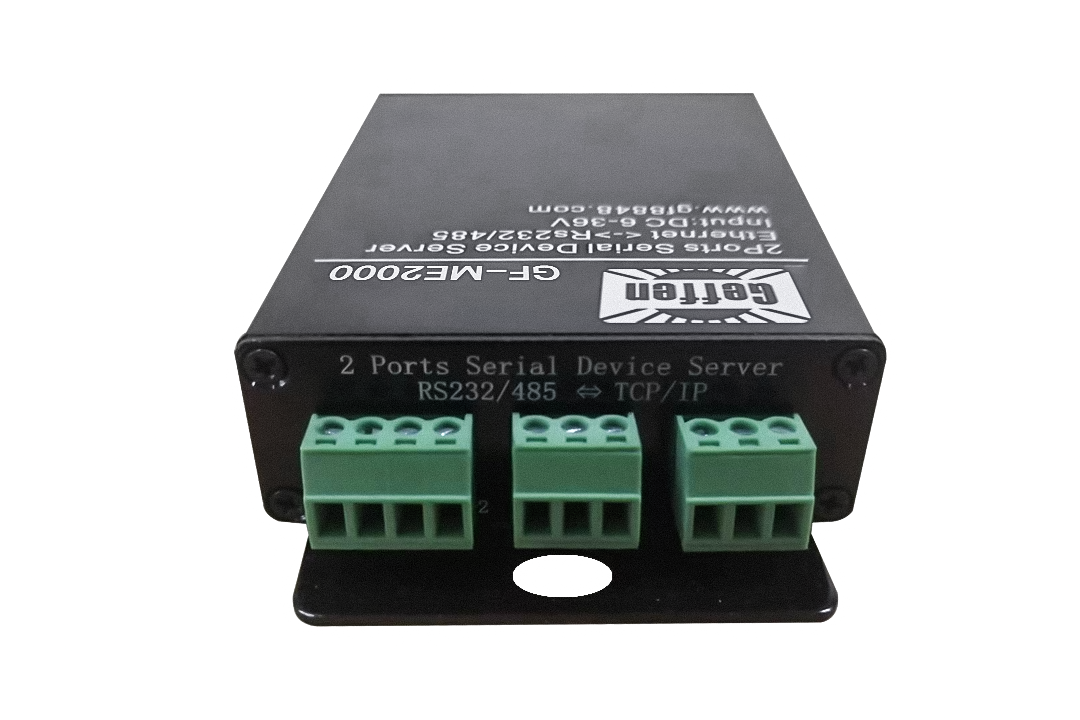

● Supports 2 independent serial ports, and RS232/RS485 can be chosen freely

● Serial ports support any baud rate

● Supports browser configuration and UDP broadcast search

● Wide power voltage design, supports DC6-36V

● Low power consumption, maximum power <1.5W

● All interfaces have ESD ±2KV protection, can be hot-plugged freely

● Convenient plug-in terminal for engineering use

● Reverse connection protection, short circuit protection, safe for engineering wiring

● Supports customer customization
