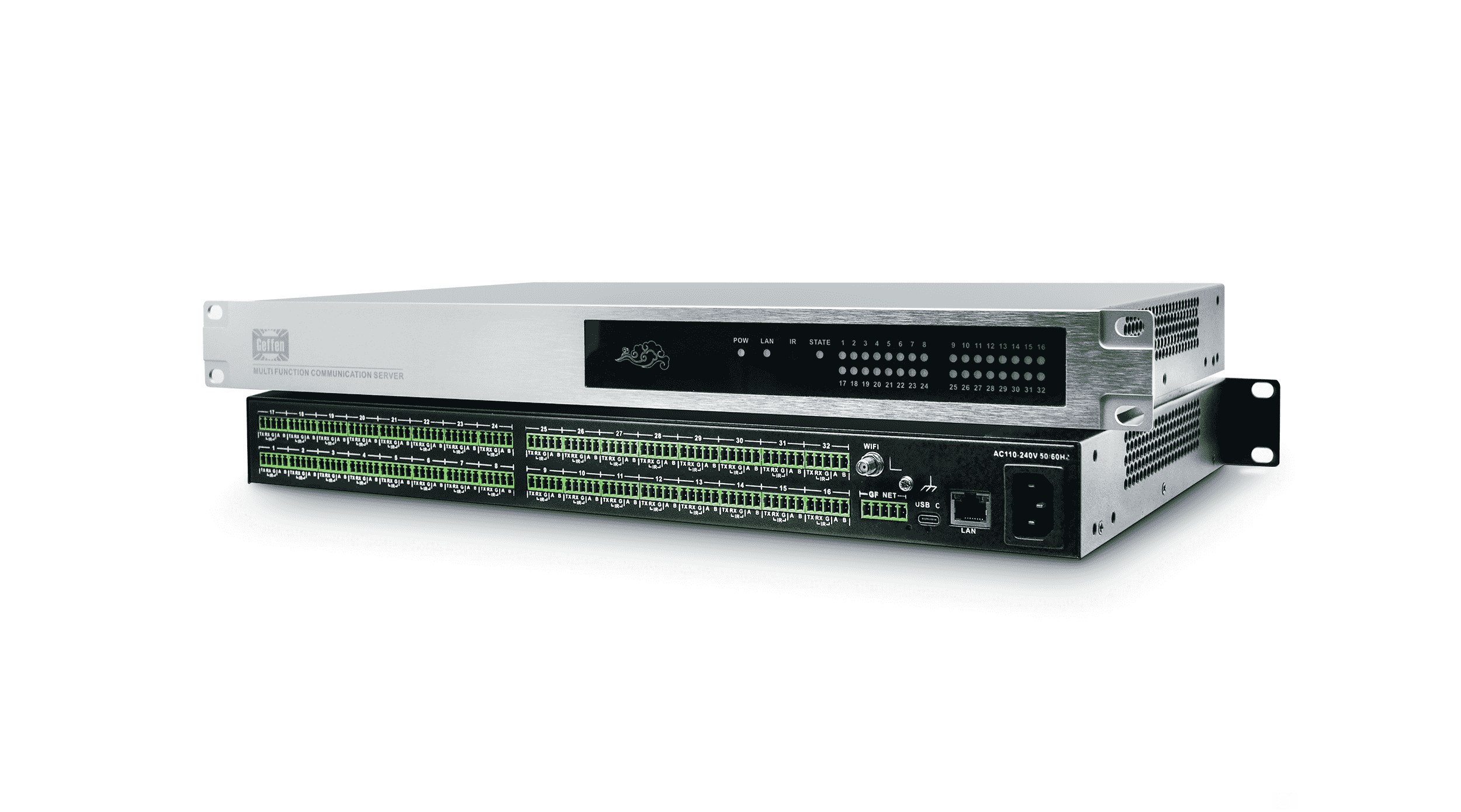

The GF-MCS32 Serial Server is an intelligent device that seamlessly integrates traditional serial port devices (such as RS-232/RS-485/infrared devices) into Ethernet networks. It enables remote data transmission and centralized management via serial-to-Ethernet technology. Its core functions include multi-protocol support, bidirectional transparent transmission, remote monitoring and industrial-grade stability. It is suitable for scenarios including industrial automation, intelligent buildings, the Internet of Things (IoT), power monitoring, traffic management and medical device networking. It can network serial port devices like access control systems, air conditioning controllers and lighting systems to achieve intelligent building management. With its high-efficiency and stable performance, flexible expandable interfaces, secure and reliable data encryption, and industrial-grade anti-interference design, the product facilitates the intelligent upgrading of devices and improves management efficiency.

· ●Adopts an industrial-grade 32-bit dual-core ARM high-performance processor for stronger real-time processing capability.

· ★Provides 1 public serial port interface for connecting to upper computers.

· ★Provides 32 serial port interfaces with DB9 male connectors. Each port can be configured as RS232 or RS485 (the two modes cannot be used simultaneously). All serial ports support both data transmission and reception for connecting to lower-level devices.

· ●Configurable serial port baud rates: 1200, 4800, 9600, 38400, 115200, etc., with a maximum support of 1 Mbps.

· ●Serial ports support 16 data bits, 1 or 2 stop bits, as well as odd parity, even parity and no parity.

· ★Supports 32-channel infrared control. It allows infrared signal learning and storage in the local infrared library, and supports two infrared control methods: invoking infrared data from the library and transparent infrared data transmission.

· ★Supports TCP Server/TCP Client/UDP working modes.

· ●10/100 Mbps adaptive Ethernet interface.

· ●150 Mbps 2.4G WiFi interface, supporting both STA and AP connection modes, compliant with IEEE 802.11n standard.

· ●Supports static IP configuration.

· ●Features Modbus gateway functionality, enabling protocol conversion between Modbus TCP, Modbus RTU and Modbus ASCII.

· ★Supports web-based configuration. Device parameters can be exported and imported for flexible and convenient configuration.

· ●Password protection for high security level.

· ★Equipped with Ethernet and serial port indicator lights for clear visualization of device working status.

· ●Has a Reset button to reset the system and restore factory settings when system parameters are configured incorrectly.

· ●Features energy consumption monitoring and temperature monitoring functions for real-time access to device operating status.

· ★Optional WiFi interface function.

· ★Provides a USB-C firmware upgrade interface for underlying firmware updates of the host.
