It adopts an 8-core simultaneous power supply design to realize network transmission and power transmission, eliminating the need for an additional power supply and ensuring fail-safe and stable power supply.
A front camera comes as standard, with optional 2MP/5MP resolution and wide-angle/binocular lens options to meet the requirements of various scenarios.
It features a Grade A original screen with high color saturation and a long service life.
The 10-point capacitive touch screen supports various gesture controls with stable touch response.
Equipped with a powerful quad-core CPU processor, it delivers fast and responsive performance.
-

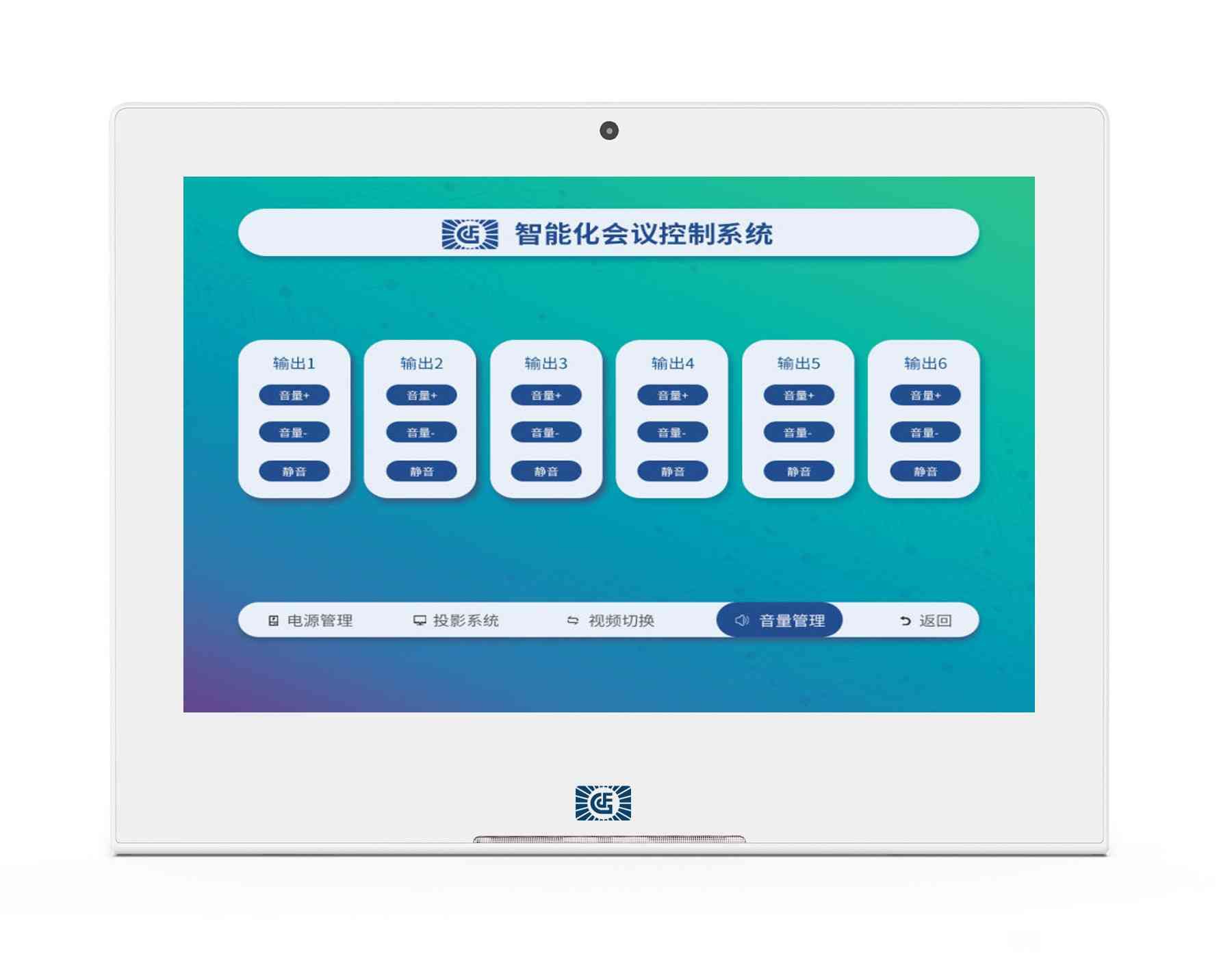

10.1-inch display with 1280×800 resolution
-
Supports 4K ultra-HD video playback
-
Quad-core Cortex-A7 (RK3128) / Quad-core Cortex-A17 (RK3288)
-
Dual-core A72 + Quad-core A53 (RK3399)
-
1GB RAM (RK3128) / 2GB RAM (RK3288/RK3399)
-
16GB large-capacity internal storage
-
Android 6.0 (RK3128) / Android 8.1/10.0 (RK3288) / Android 7.1/9.0/10.0 (RK3399)
-
10-point capacitive touch
-
Front camera: 2.0 MP
-
Wi-Fi 802.11b/g/n
-
Bluetooth 4.0
-
RJ45 Ethernet port
-
POE function (optional)
-
Serial port (USB form factor, RS232 level)
-
Supports USB 3.0 host (RK3399 only)
-
Supports HDMI output
-
Supports TF card expansion
-
Power adapter: 12V/1.5A
-
Supports large-capacity lithium battery (optional)

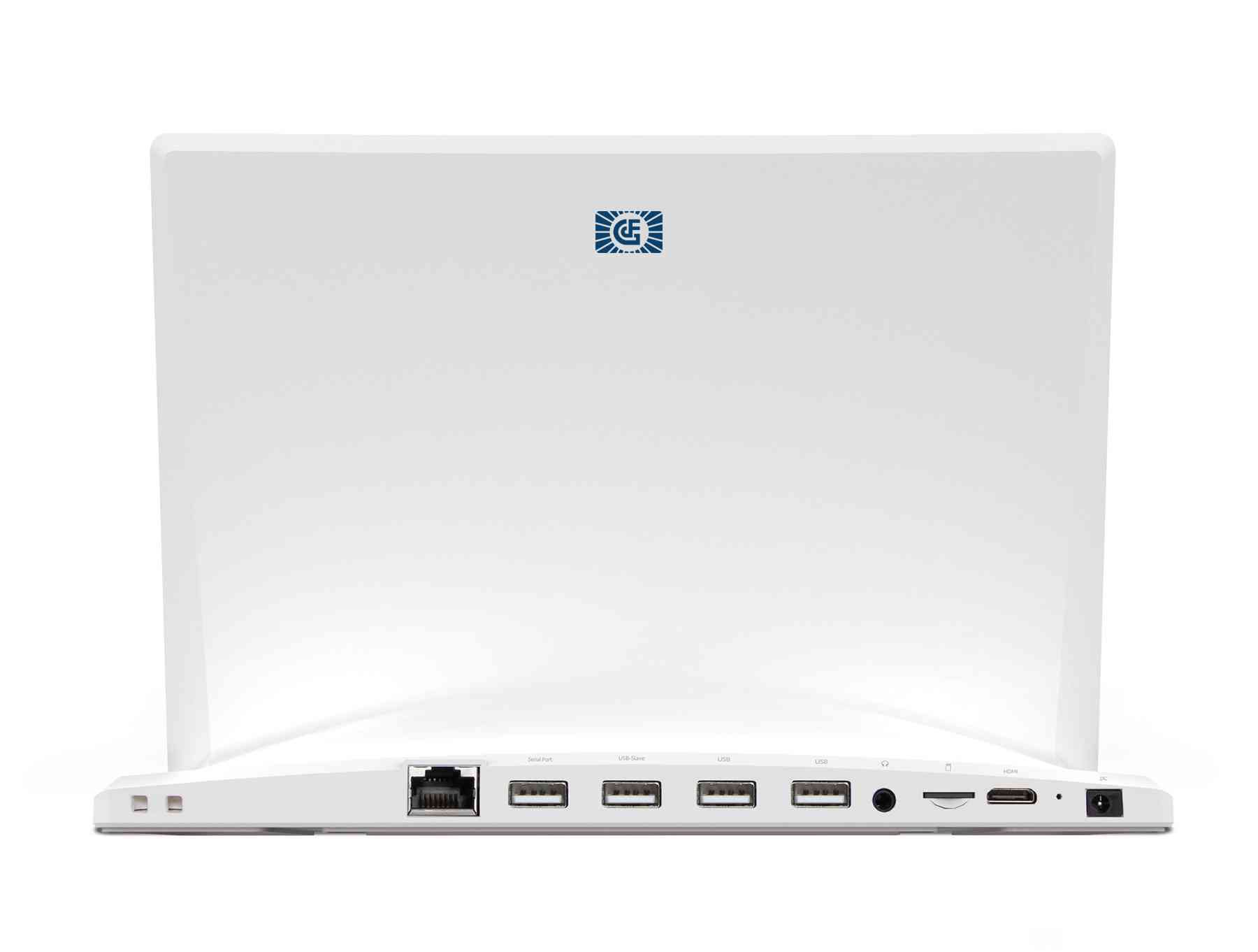

Ethernet Port, Serial Port, USB Port, TF Card Slot, Micro USB OTG, 3.5mm Headphone Jack
Android 8.1 comes as standard, with support for upgrading to versions 6.0/8.1/9.0/10.1/11.
Processor: RK3288, Quad-core, Cortex-A17, 1.8GHz
Software Support: Android system, compatible with APK installation
Memory: 2GB RAM + 16GB ROM as standard, optional 4GB RAM + 32GB ROM
Network Support: Wi-Fi, Bluetooth, Ethernet
Built-in Speaker
