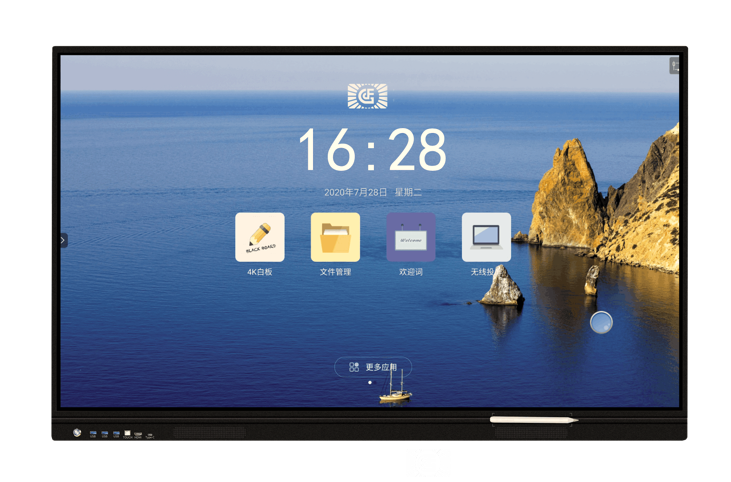

55-inch Narrow-bezel LCD All-in-one Unit
GF-TSI55

Designed specifically for industrial monitoring and multimedia information display, it supports signal splicing display. With a splicing controller, it can also achieve special display functions such as signal splitting display, windowing, overlaying, cross-screen display, and roaming zooming.

It adopts a DID LCD panel with a 178° all-round viewing angle and a high color gamut, and is equipped with a super digital drive system and an 8ms ultra-fast response speed. Especially when displaying dynamic videos, web content and 3D animations, it ensures smooth motion pictures without trailing or ghosting. The efficient 3D comb filter image processing engine delivers clearer and more realistic images!

Equipped with an industrial-grade power supply system and self-constant temperature heat dissipation, it supports 24/7 non-stop operation. The dual-LED backlight provides higher brightness and lower power consumption.

The system is compatible with both analog and digital high-definition signal inputs. All types of signal inputs can be displayed in single-screen mode, arbitrary combined splicing mode, or full-screen splicing mode.

High Brightness: The LCD video wall features uniform screen brightness and stable, flicker-free images, with a maximum brightness of up to 500 cd/㎡, far exceeding ordinary display devices. The images remain clearly visible even under strong light.

Flexible Splicing Options: The LCD video wall supports arbitrary splicing methods, with freely selectable splicing quantities (rows (m) × columns (n)) and multiple screen size options, to meet the needs of different application scenarios.

It adopts industry-leading low heat flux density and low power density design, which can minimize the overall temperature of the device, extend its service life, and ensure noise-free operation.

Type	Parameter / Description
Display	Display Size	55”
	Display Area	1209.6MM (H) ×680.4MM(V)
	Display Aspect Ratio	16:9
	Physical Bezel Gap	0.88MM
	Backlight Source	LED
	Resolution	1920*1080pixels
	Brightness	500cd/㎡
	Contrast Ratio	1200:1
	Uniformity	90%
	Color	1.07B(8bit)
	Color Gamut	72%
	Viewing Angle	89°/89°/89°/89°（min）（CR≥10）
	Response Time	8ms
Interfaces	HDMI	1*HDMI IN
	DVI	1*DVI IN
	USB	1*USB
	RS232	1RS232 IN/2RS232 OUT
Power Supply	Operating Voltage	AC110V/220V 50/60Hz
	Maximum Power Consumption	240W
	Standby Power Consumption	0.5W
Operating Environment	Operating Temperature	0~50°
	Storage Temperature	-20~60°
	Service Life	50000H
	Relative Humidity	10~80%RH No Condensation
