HDBaseT 100m Wall Socket 4K Audio and Video Signal Lossless Uncompressed Extender
GF-TPHD241WP

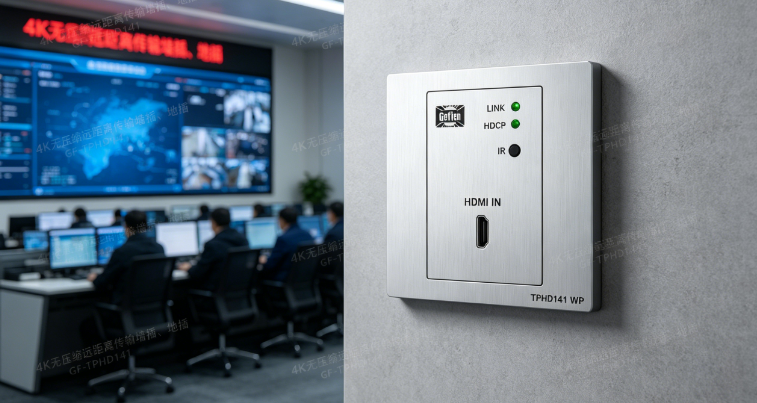

Panel-type line doubling switch transmitter (transmitting end) Supports input signals: 1 HDMI video signal, 1 VGA video signal, 1 audio signal synchronised with the VGA video signal. Built-in switching and line doubling functions, VGA signal can be doubled up to a resolution of 1920X1200 output

Detail

The product can be controlled via an RS232 serial port and, when paired with a remote RS232, can achieve two-way communication functionality.

It can transmit HDMI video and audio signals over a single network cable over long distances, up to 100 metres.

When used with a HDBaseT-enabled receiver and CAT5e/6 cabling, it can transmit HDMI and VGA signals up to 120 metres and supports EDID functions and POC remote power supply.

It can be used with a hybrid matrix. It supports HDMI 1.3 with a maximum resolution of 4Kx2K. It has a high bandwidth of 10.2Gbps.

It includes a built-in repeater, allowing VGA signals to be amplified up to a maximum resolution of 1920x1200.

VGA output resolution can be adjusted via RS232 commands.

Supported output resolutions include 1280x720, 1280x800, 1360x768, 1600x1200, and others.
