4K60 All-in-One Optical Network KVM Fiber Transmitter-Geffen Maxtrix Control System Manufactory CN

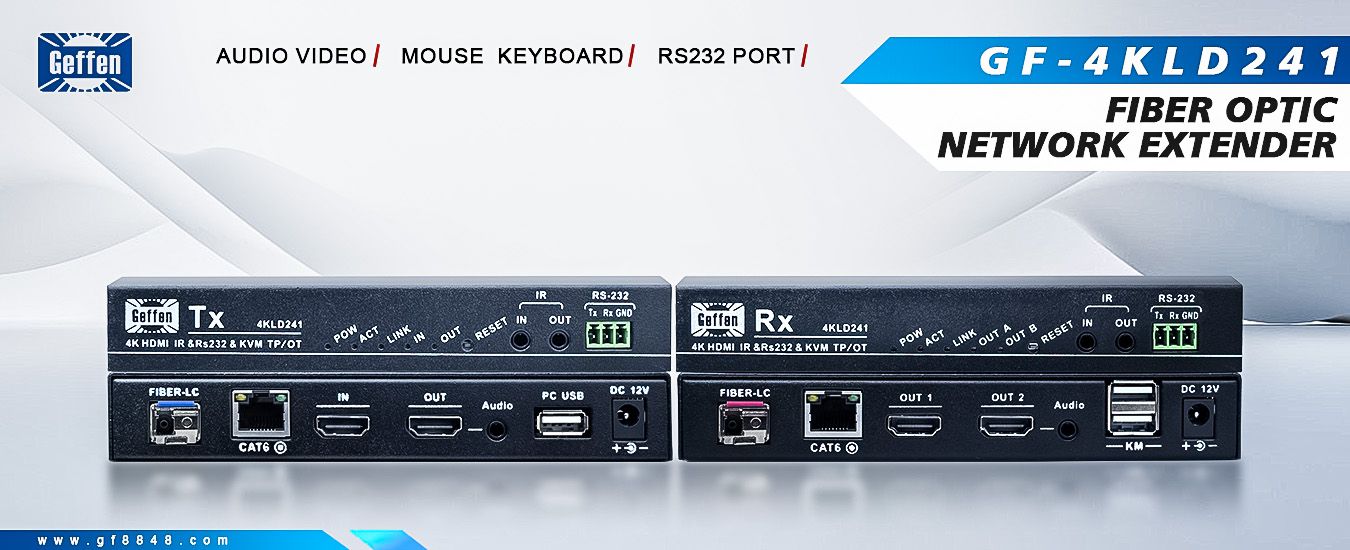

4K60 All-in-One Optical Network KVM Fiber Transmitter
GF-4KLD241 PRO

Detail

Integrated fiber and network cable transmission (optional)

Maximum network cable length: 100m; supports POC power supply with DC12V voltage

Supports bidirectional RS232 and IR data transmission; CEC is not supported

Supports reverse USB keyboard and mouse connection: connect the TX unit to the PC host, and the RX unit to keyboard and mouse devices (only keyboard and mouse HID devices are supported)

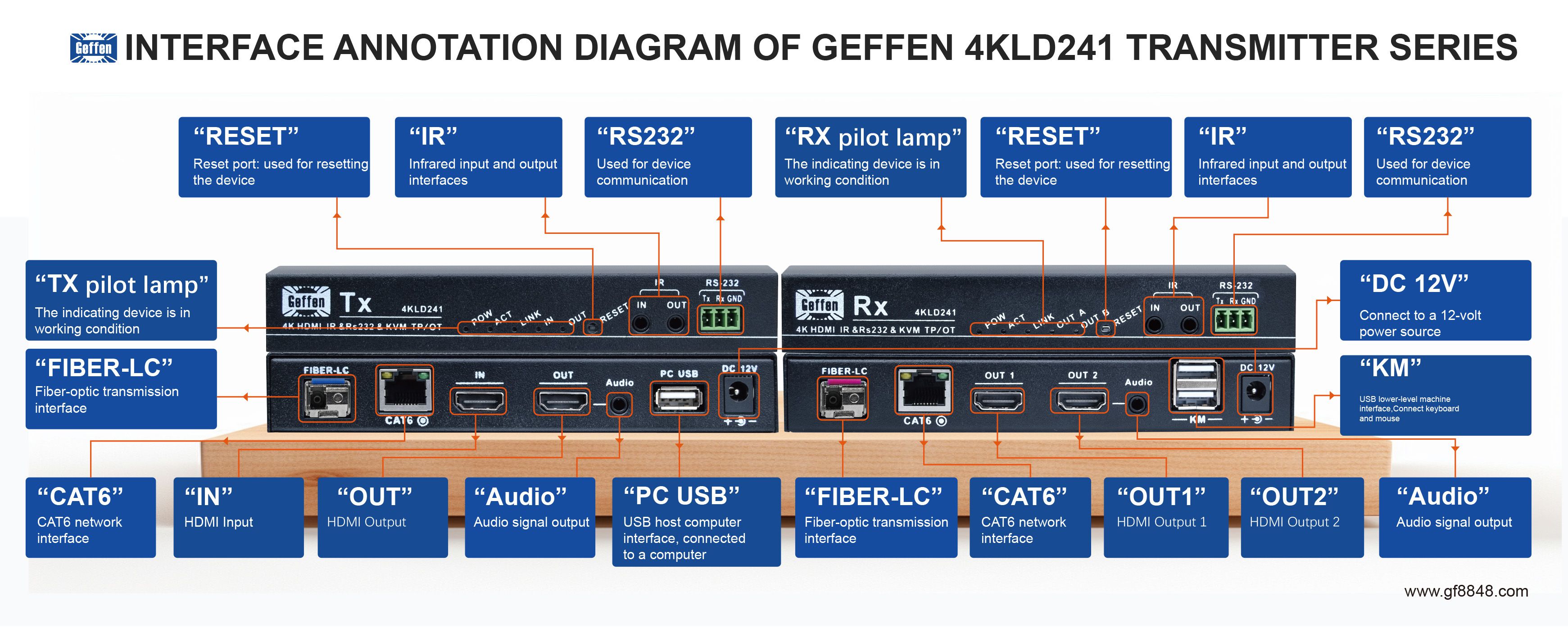

TX unit: 1-channel HDMI input, 1-channel HDMI loop output, 1-channel analog audio output

RX unit: 2-channel HDMI outputs, 1-channel analog audio output

Maximum supported video signal: 4K@60

EDID pass-through: When HDMI loop output port of the TX unit and HDMI output port of the RX unit are connected to display devices simultaneously, EDID will be adjusted automatically and take the intersection of EDID combinations of all connected display devices to ensure normal video output
