●Geffen Modular multi-format mixed seamless switching matrix is a high performance video signal switching equipment . It supports up to 8~140 inputs, 8~140 outputs with many kinds of daughter cards. This product supports multiple video formats input and output.
●Multi-format matrix using the daughter cards structure, flexible and convenient installation. Theinput/output port support : Fiber, HDbaseT, SDI, HDMI, VGA, DVI- U(HDMI/ DVI/VGA/YPb Pr/CVBS).

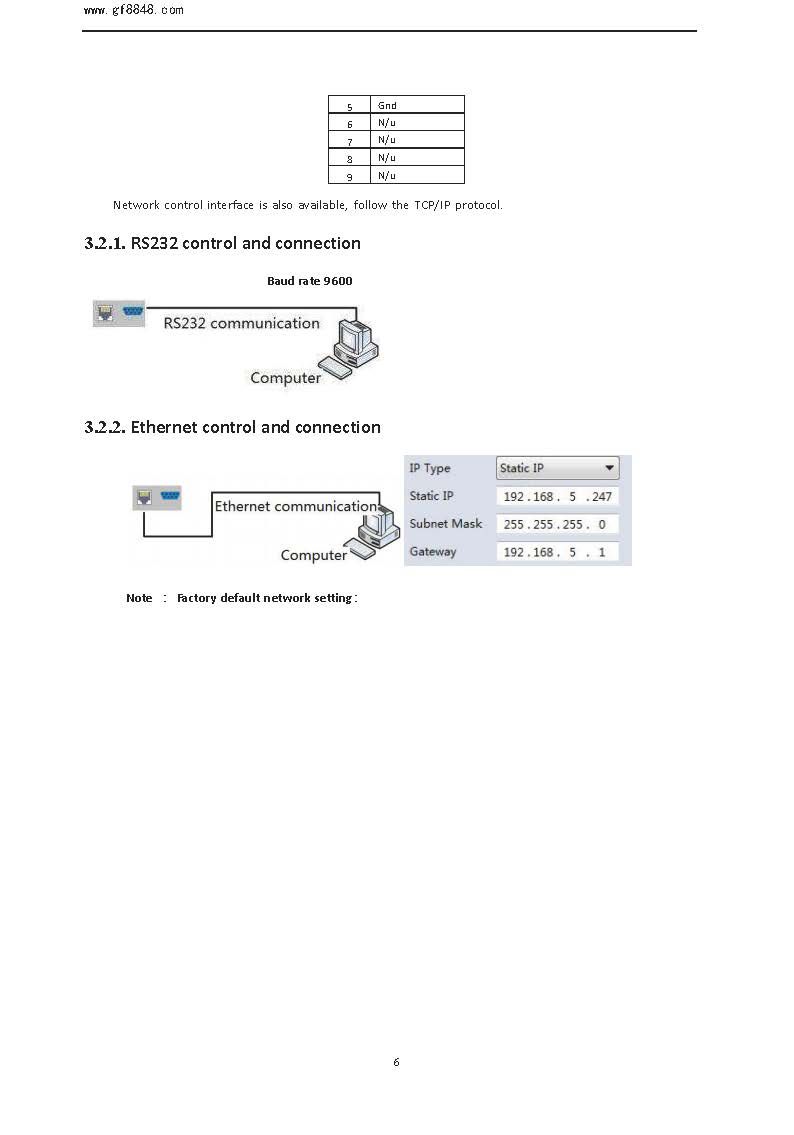

●With the Ethernet/LAN and RS232 communication interface, through the PC software to control the matrix signal switching, monitoring the working status of the matrix, set the signal resolution, etc.
●The video delay between any output channel is less than 0.1ms, the video will not distorted.
●Available in 8x8~140x140 depends on number of output channels.It’s especially matched with LCD/LED Video Wall.
●Default: English, Chinese, Available: French, German, Hindi, Portuguese and Spanish, etc.
●Size/Color/Position/Content may be set by PC/Notebook.
●Redundant power supply
●Support Seamless switching
●Support up to 8~80 inputs and 8~80 outputs

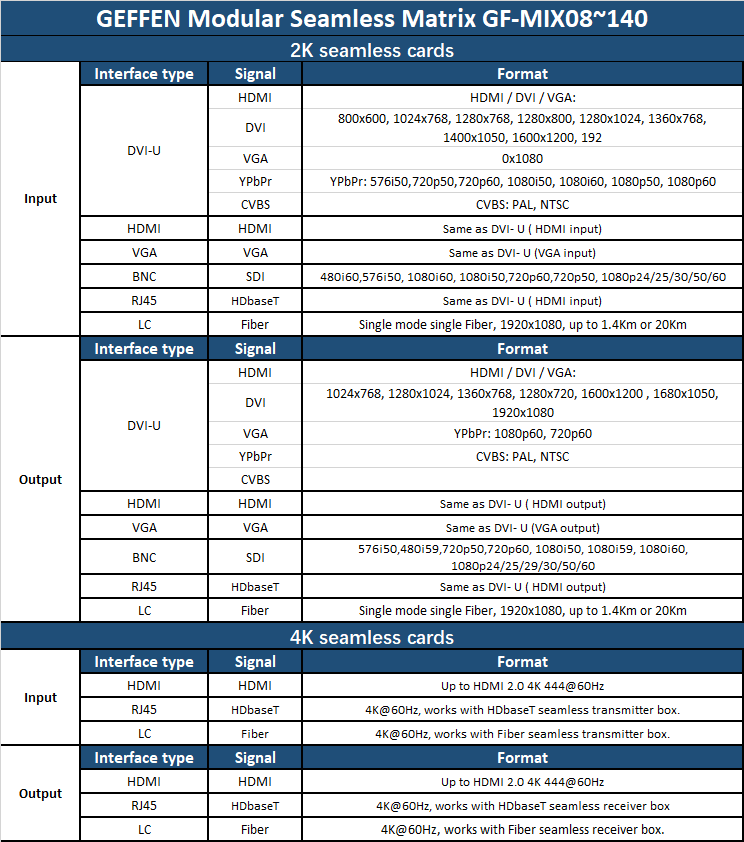

●Input/Output port : Fiber, HDbaseT, 3G-SDI, HDMI, DVI- U(HDMI/ DVI/VGA/YPb Pr/CVBS) maximum resolution of 1920 x 1080@60Hz (2K cards); 3840x2160@60Hz(4K cards) Control interface: RS232,Web-based Ethernet/LAN

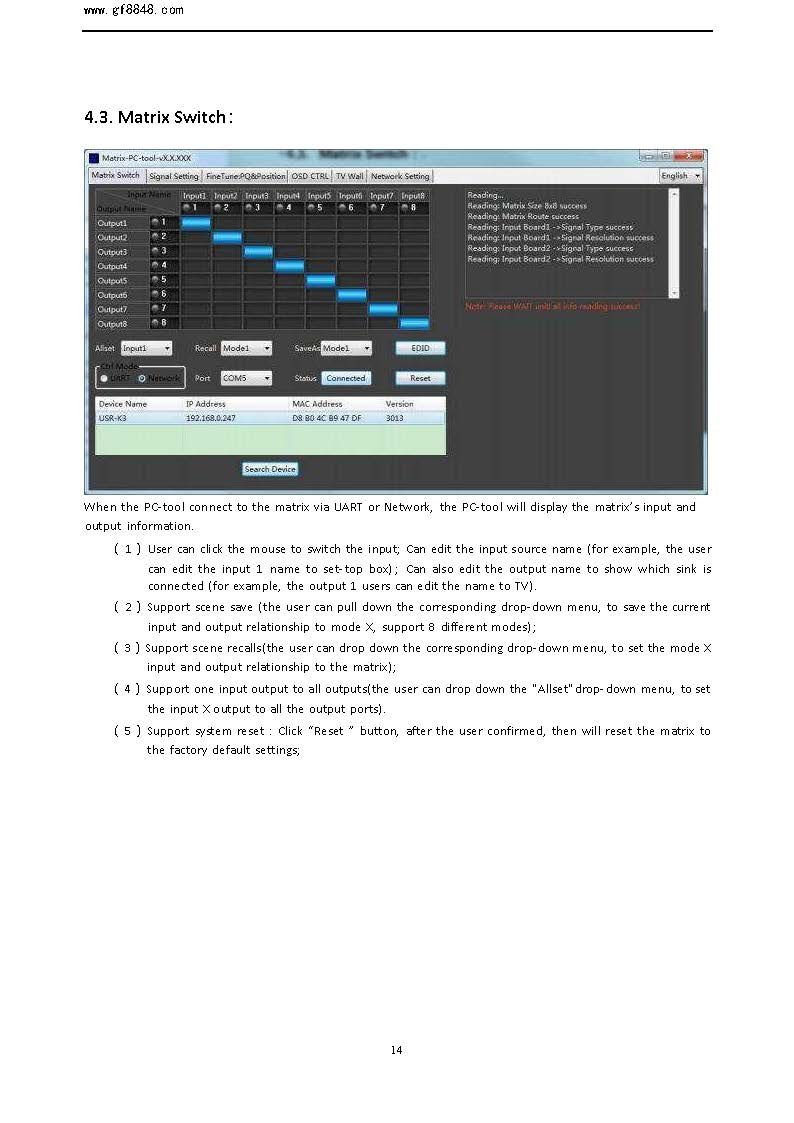

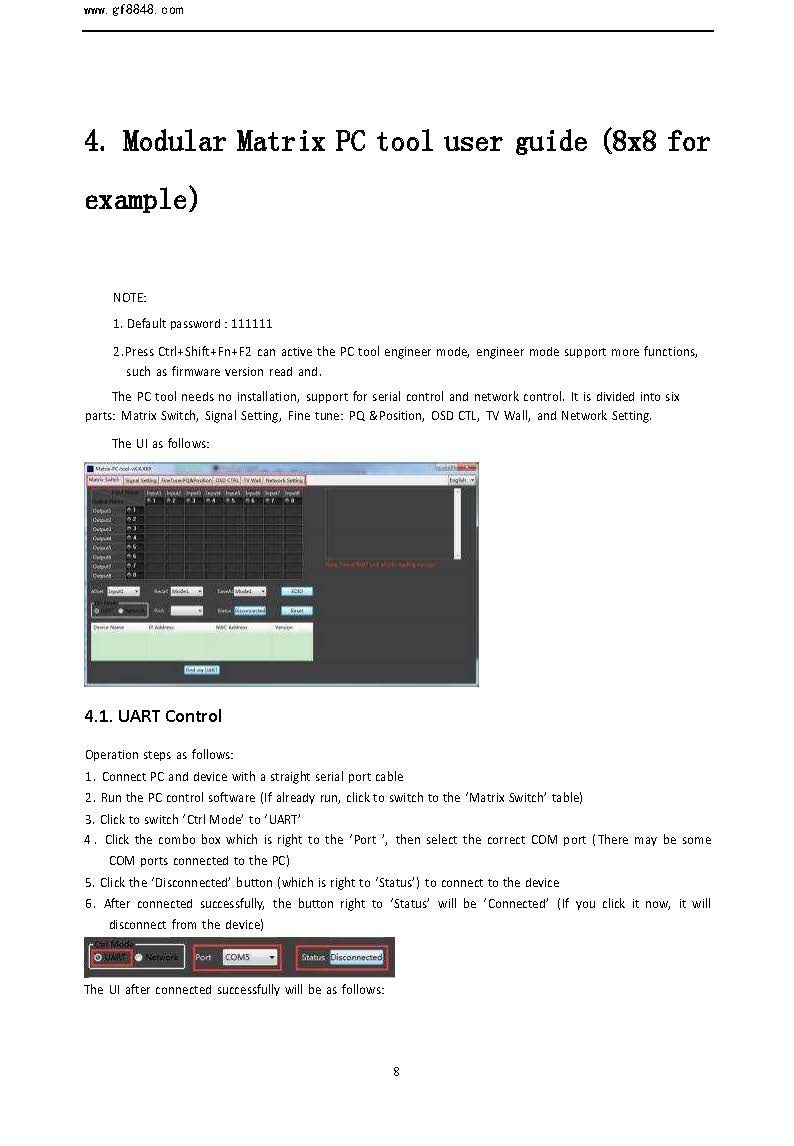

●PC software to facilitate remote control, real-time display the input and output status Scalar inside, output resolution control available Video wall function

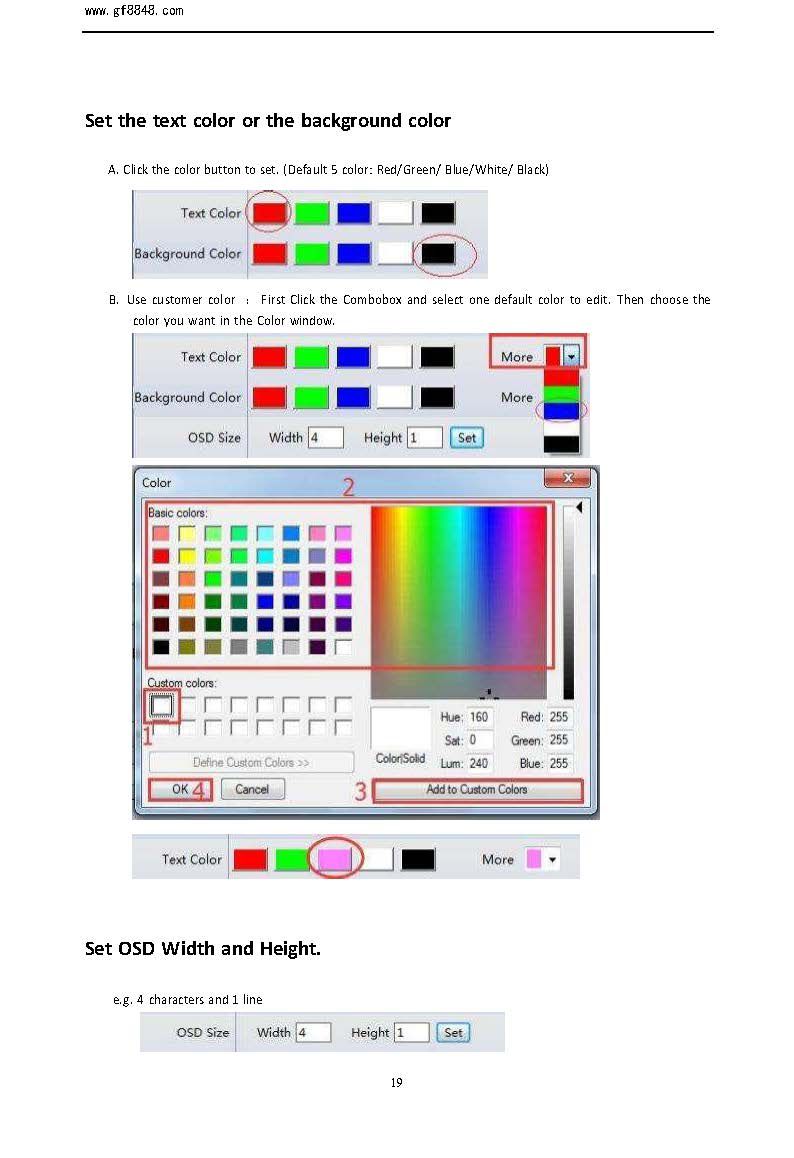

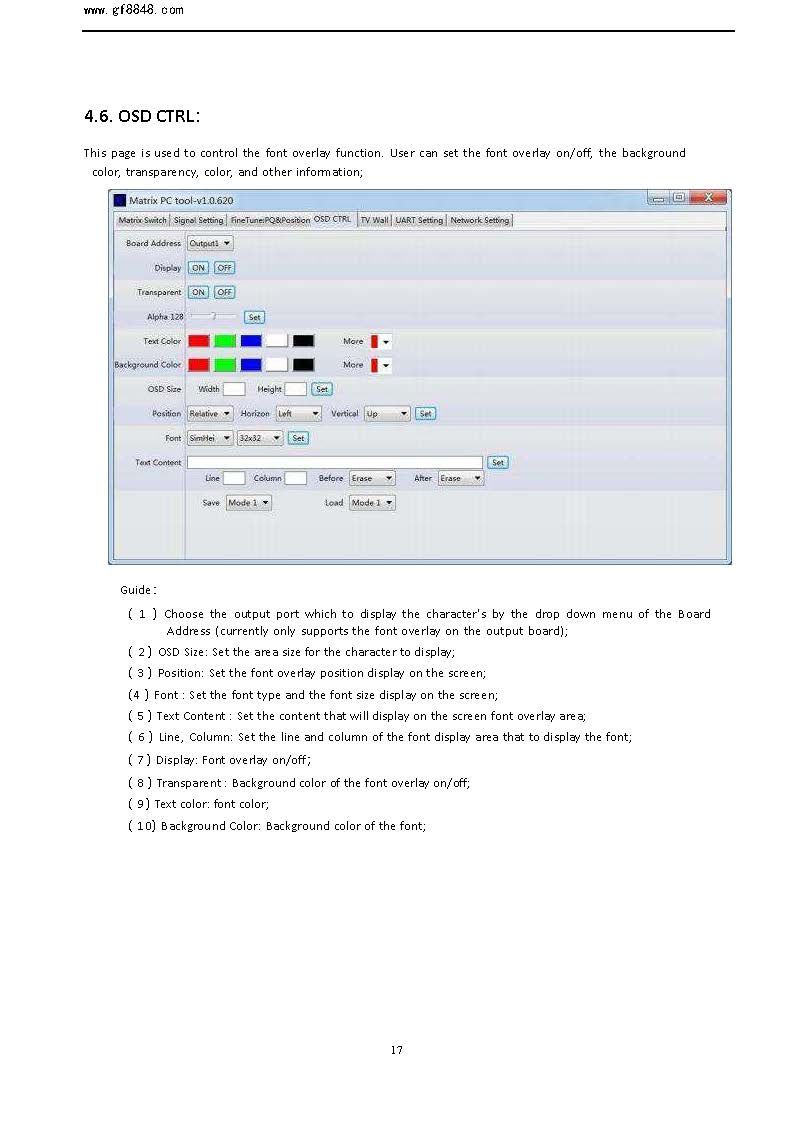

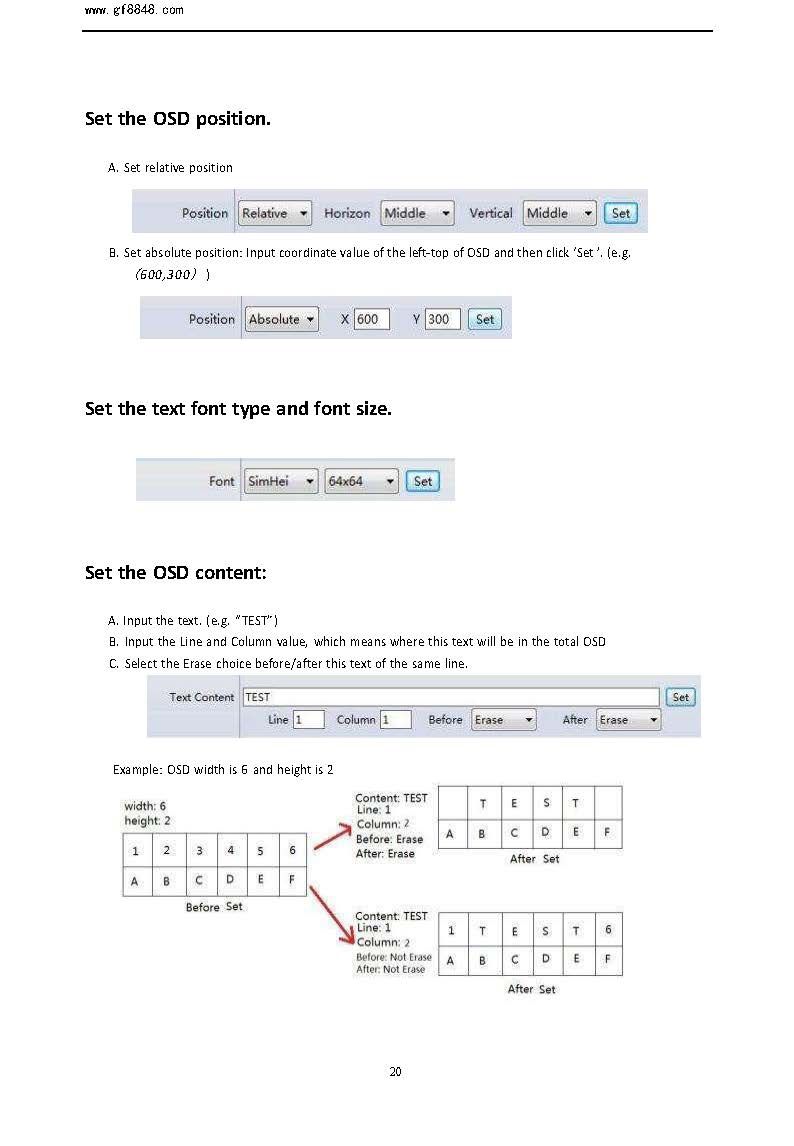

●Character overlay function: Font / color / size control available
\
