1080P HD Wireless WiFi Transmitter 200M
GF-WLP04M

HD extender transmits HD audio and video signal via wireless WIFI, and meanwhile supports IR remote control function. Featured by excellent image processing and transmission pability, this device makes it smoother and more stable to transmit signals, which is an economical and efficient HD signal transmission device.

HD signal wireless transmission;
●Under barrier-free environment without interference 200m;
●Support one transmitter and four receivers; the distance will be shortened asthe increase of receivers;
● Support to remotely control video sources;
●Built-in ESD electrostatic protection circuit to comprehensively protect the safetyof system;
● Easy and convenient to install, plug and use, and no settings required.

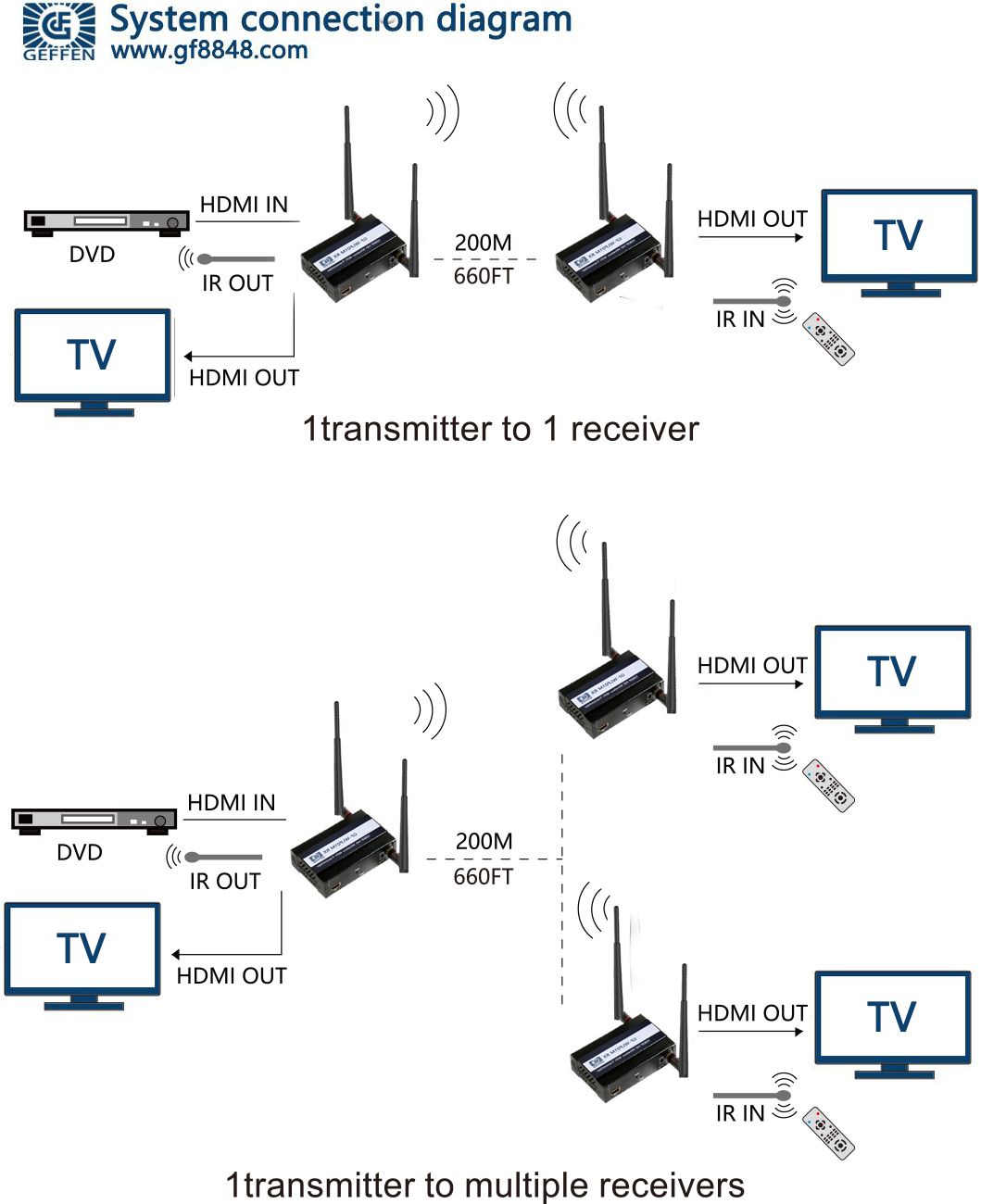

●Connect to HD cables first, then connect the signal source to Sender (transmittingterminal) IN input;
●Connect the local display device to Sender (transmitting terminal) LOOPOUT output;
●Connect the extender’s Receiver (receiving terminal) to the remote display device(such as TV and splicing screen);

●IR Remote Control: Please align the IR end of the extender on the transmittingterminal with the IR receiving terminal of the signal source that requires to becontrolled, and make them close to each other.

●Outdoor open area 200m/660FT50m/164FT

● without wall penetration indoors.10-20m/32-65inch

● through a wallThe upper and lower floors are better within 10m/32FT

●The above distance is for reference only, becauseofthe site,environment,interference, wall andother factors,lt has a greatimpact on the wirelesstransmission effect,and the actual distance can betransmitted in use

Pairing Method:

Connect HD cable to TX input and RX output after 25s from the time of being electrified, wait for 10s after unplug, then make it be electrified.
