Using advanced HDBaseT technology, it adopts non-delay, non-compressed transmission technology, supports 1920*1200@60Hz HDMI signal transmission 150 meters through Cat5e/6 network cable, and can also transparently transmit RS232 control signals and infrared signals, can be connected to all standard HDBaseT equipment, widely used in home theater, exhibition and command center scenes.

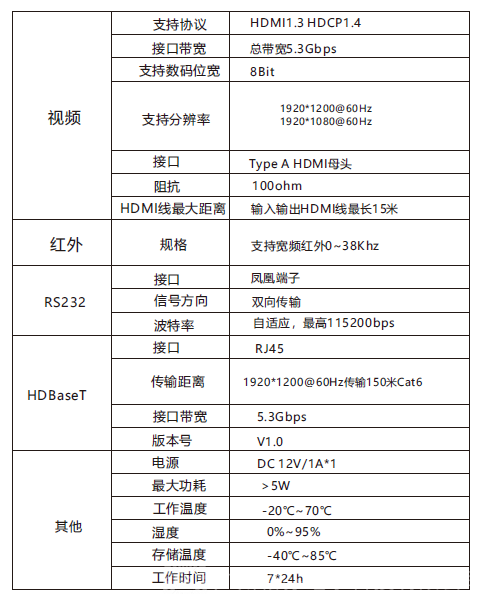

● Support HDMI1.3, HDCP1.4.
● The supported resolution can be up to 1920*1200@60Hz, 1080P@60Hz.
● Support a Cat5e/Category 6 network cable to transmit 5.3Gbps HDMI signal, infrared signal and RS232 serial signal.
● Support up to 7.1 channels and LPCM, Dolby TrueHD, DTS-HD Master Audio.
● Support EDID & HDCP transparent transmission, compatible with various HDMI signal sources and display devices.
● Support RS232 transparent transmission, baud rate support range 110~115200bps.
● Easy to install, plug and play.
● No compression, no delay transmission of images, zero loss of image quality.
● Support POC single-ended power supply, power can be connected at the receiving end or the other end of the transmitter end, belt
Threaded power head, never loose.

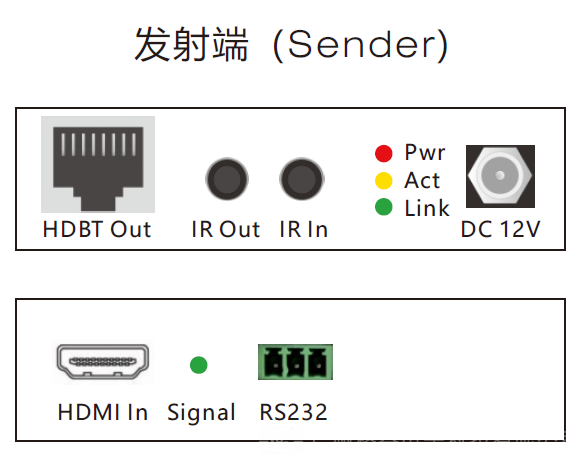

● HDBT Out: HDBaseT signal output, access network cable;
● IR Out: IR output, connected to IR emission extension cable;
● IR In: IR input, connected to IR receiving extension cable;
● PWR: Power indicator, red, solid on when powered on;
● Act: Status indicator, yellow, flashes once a second when powered on;
● Link: The connection indicator is green, and the connection between transmit and receive is always on;
● DC 12V: power interface, plug into the power adapter of the distribution;
● HDMI In: HDMI interface, plug in HDMI cable to connect to the signal source (PC);
● HDCP: Signal indicator, green, with HDCP always on, no HDCP fast flashing;
● RS232: RS232 transparent transmission;

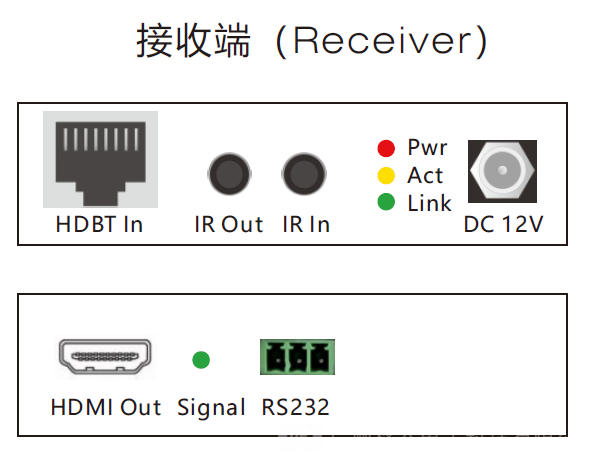

● HDBT In: HDBaseT signal input, access network cable;
● IR Out: IR output, connected to IR emission extension cable;
● IR In: IR input, connected to IR receiving extension cable;
● PWR: Power indicator, red, solid on when powered on;
● Act: Status indicator, yellow, flashes once a second when powered on;
● Link: The connection indicator is green, and the connection between transmit and receive is always on;
● DC 12V: Power interface, plug into the power adapter of the distribution, support
POC single-ended power supply;
● HDMI In: HDMI interface, plug in HDMI cable to connect to the signal source (PC);
● HDCP: Signal indicator, green, with HDCP always on, no HDCP
Rapid flashing;
● RS232: RS232 transparent transmission;
