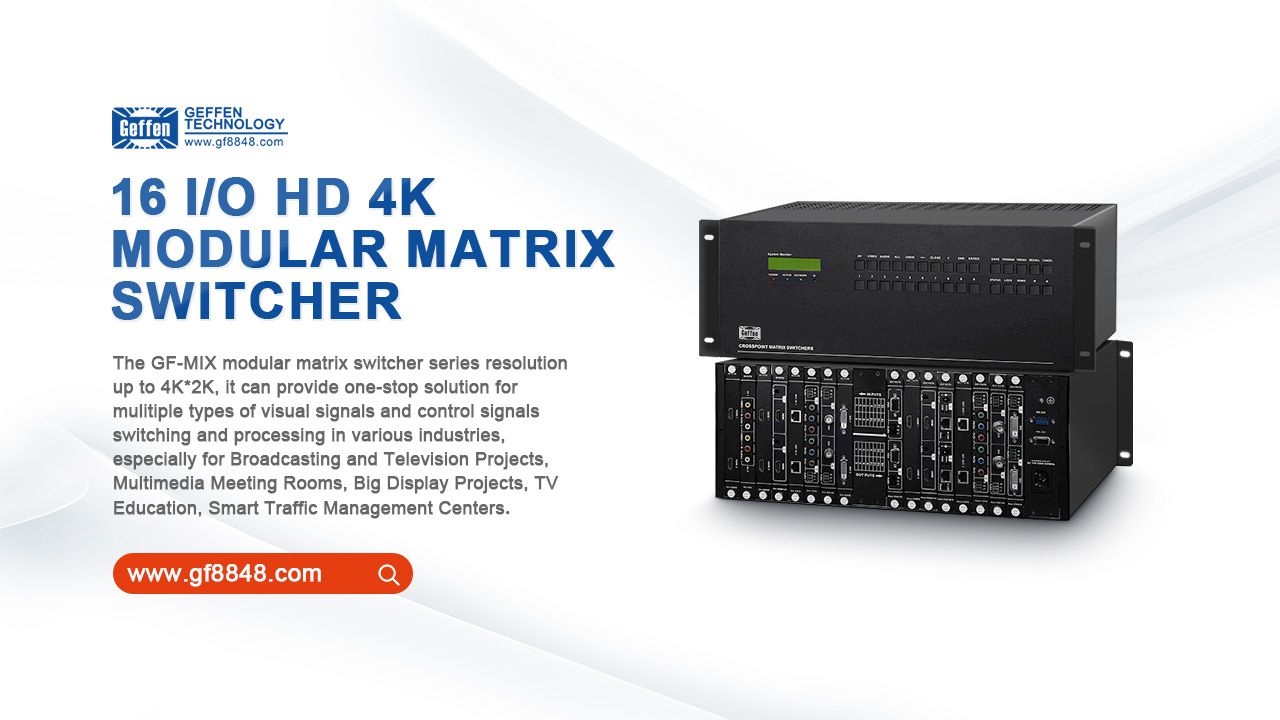

GEFFEN Seamless 4K60 Matrix: Professional Signal Switching with Free Window & Free Layout Capabilities

1. Product Overview: Seamless 4K60 Performance as the Foundation

What sets this matrix apart is its seamless switching technology—signal transitions are instantaneous, without any black screens, flicker, or frame loss, making it ideal for scenarios that require frequent signal switching, such as live presentations, real-time monitoring, and multi-source video conferences. With flexible input/output configurations (available in 4-16 channels), it can easily connect multiple signal sources and display terminals, realizing arbitrary routing of signals to meet the needs of different application scales.

2. Built-in Basic Processing Capabilities: Practical and Efficient Signal Optimization

• Resolution Scaling: Each output channel supports independent resolution scaling, allowing users to adjust the output resolution to match different display terminals (e.g., 4K monitors, 1080P projectors, small-pitch LED screens) without signal distortion. This ensures consistent display quality across all connected devices, even when mixing different resolution sources.
• Audio Embedding & De-embedding: The matrix supports audio embedding, enabling the integration of audio signals with video signals for synchronous transmission, eliminating the need for separate audio cables. It also features audio de-embedding, allowing users to extract audio signals from the combined audio-visual stream and connect them to external audio devices (such as power amplifiers and speakers) for independent control, adapting to scenarios that require separate audio and video management.
• Image Adjustment: Basic image optimization functions are included, such as horizontal/vertical mirroring and brightness/contrast adjustment, enabling users to fine-tune the display effect according to the installation environment and viewing needs. Additionally, it supports screen freezing and black screen control, providing flexibility for scenarios like meeting pauses or privacy protection.
• EDID Management: Equipped with intelligent EDID management, the matrix supports EDID reading, writing, cloning, and custom configuration, ensuring seamless compatibility between different signal sources and display terminals. This effectively avoids issues such as no display, signal incompatibility, or distorted images caused by mismatched EDID settings.

3. Core Features: Free Window & Free Layout for Flexible Display

3.1 Free Window: Flexible Multi-Window Management

• Free Positioning & Scaling: Each window can be dragged to any position on the display screen, and its size can be adjusted by dragging the edges or corners, allowing users to prioritize important signals by resizing the corresponding windows (e.g., enlarging the main presentation window while keeping auxiliary monitoring windows small).
• Layered Display: Multiple windows can be stacked in a Z-axis order, and users can easily switch the topmost window with a single click, ensuring that key information is always visible. This is particularly useful in command centers or monitoring rooms where multiple real-time signals need to be monitored simultaneously.
• Independent Control: Each free window has independent control options, such as closing, minimizing, or maximizing, allowing users to manage each signal source separately without affecting other windows. This flexibility greatly enhances operational efficiency in multi-tasking scenarios.

3.2 Free Layout: Customizable Interface Design

• Drag-and-Drop Placement: Users can visually drag and drop any signal window or interface element to any position on the screen, creating irregular or non-uniform layouts that meet specific application needs (e.g., customizing a dashboard for a command center with different-sized windows for video surveillance, data statistics, and alerts).
• No Automatic Rearrangement: Unlike fixed layout modes, the Free Layout function does not automatically rearrange elements when the display screen is resized. This ensures that the user’s custom layout remains intact, avoiding unexpected changes to the display interface. Users can manually adjust element sizes or positions if needed to adapt to different screen sizes.
• Scene Saving & Recall: Users can save their custom Free Layout configurations as scenes (up to 30 scenes supported) and recall them with a single click when needed. This is particularly convenient for scenarios that require frequent switching between different display modes (e.g., switching between a conference presentation layout and a monitoring layout in a multi-purpose room).

4. Versatile Control Methods & Easy Operation

• Front Panel Control: Equipped with an OLED or LCD screen and physical buttons, the front panel allows users to perform basic operations directly, such as signal switching, window adjustment, and scene recall. The screen displays real-time information, including signal status, input/output channels, and device settings, enabling intuitive local operation.
• Remote Control: The included IR remote control supports long-distance operation, allowing users to adjust settings, switch signals, and manage windows from anywhere in the room. The remote control is ergonomically designed with clear buttons, making it easy to use for non-professional users.
• Web GUI & Network Control: Built-in web server support enables remote control via a web browser—users can access the matrix’s control interface by entering its IP address, allowing for centralized management of multiple matrices or integration with a larger control system. It also supports TCP/IP control, enabling integration with third-party control systems such as Crestron, Control4, and RTI.
• RS-232 Serial Control: For professional integration, the matrix is equipped with an RS-232 serial port, allowing connection to a PC or dedicated control system for advanced programming and automated control, suitable for large-scale audio-visual systems in command centers or exhibition halls.

5. Reliable Performance & Wide Application Scenarios

• Corporate Conference Rooms & Boardrooms: Supports multi-source signal switching (laptops, projectors, video conferencing equipment) and Free Window/Free Layout for flexible presentation of reports, videos, and data.
• Command Centers & Monitoring Rooms: Enables simultaneous display of multiple surveillance cameras, data dashboards, and alerts with Free Window management, ensuring real-time monitoring and quick response.
• Exhibition Halls & Digital Signage: Customizable Free Layout allows for creative display of product videos, images, and information, enhancing the audience experience.
• High-End Home Theaters: Seamless switching between streaming devices, game consoles, and Blu-ray players, with Free Window support for multi-tasking (e.g., watching a movie while monitoring a security camera).
• Education & Training Rooms: Supports multi-source teaching content display, allowing teachers to switch between courseware, videos, and live demonstrations flexibly.

6. Conclusion
